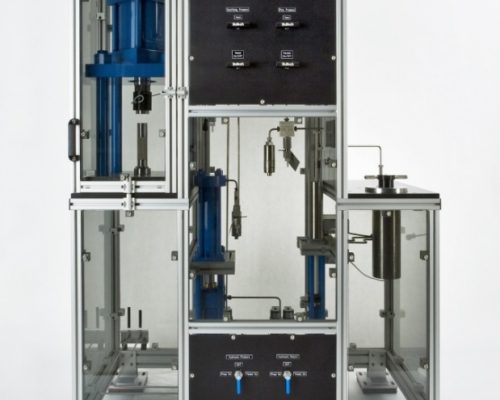

The AutoLab Rock Physics Workstation is a versatile servo-hydraulic apparatus designed to acquire commonly utilized rock physics data. The apparatus has two sections: a uniaxial stress test frame and a hydrostatic pressure vessel. The servo hydraulically controlled test frame is well suited for measuring unconfined compressive strength, elastic constants compressional and shear wave velocities, fracture toughness, and Brazil indirect tensile strength. An AutoLab 1000 is incorporated into the unit.
AutoLab Rock Physics Workstation Key Features
- Servo-hydraulic control of axial force and axial displacement,
- Supports standard ASTM and ISRM uniaxial stress rock mechanics tests,
- Integrated electronics console for servo amplifiers and signal conditioning,
- AutoLab v6 control and data acquisition,
- Extremely quiet and compact hydraulic power supply,
- Combined with an AutoLab 1000
AutoLab Rock Physics Workstation Specifications
- AutoLab 1000 – as listed above
- Sample Diameter – 19 to 51 mm (0.75 to 2.0 in)
- Maximum Force – 375 kN (84,000 lbs)
- Axial LVDT – 100 mm (2.0 in)
