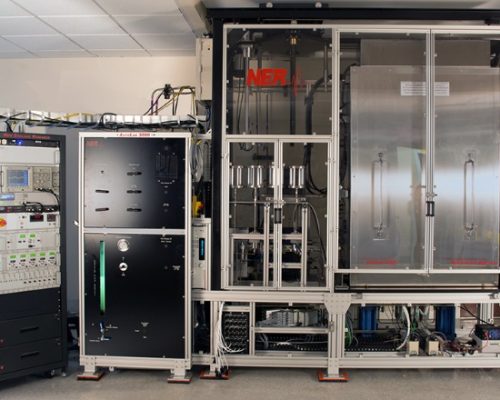

The AutoLab 3000 is a unique triaxial apparatus with the pressure vessel and the pore fluid intensifiers housed in a furnace that heats the entire system to 150oC (300oF). This system was designed to examine the effects of rock/pore fluid chemical interactions on geomechanical and petrophysical rock properties at moderate temperatures and pressures. By incorporating the pore pressure intensifiers into the heated zone with the pressure vessel, pore fluids are injected into the sample without thermal shock. Fluid samples can be collected from the downstream end of the sample and stored at the temperature and pressure conditions of the measurement. With a large bore vessel, three pore pressure intensifiers, and a minimum of forty (40) high pressure electrical feed thru’s, the unit has the flexibility to accommodate well instrumented, complex experiments at an almost any required loading protocol.
AutoLab 3000 Key Features
- Supports standard ASTM and ISRM triaxial rock mechanics tests,
- Servo-hydraulic control of strain rate, force, confining pressure, pore pressure, and flow rate
- Standard options include deformation with strain gauges and LVDTs, compressional and shear wave velocities, steady state and transient permeability, complex electrical impedance, counting and locating acoustic emissions (AE), triaxial loading using flat jacks.
- Pore pressure intensifiers with ceramic pistons and titanium bodies compatible with water, brine, CO2 saturated brine, gas, and oil,
- Output volumes for the pore pressure intensifiers range from 59 cm3 (3.6 in3) to 482 cm3 (29.5 in3).
- Integrated electronics console for servo amplifiers and signal conditioning
- AutoLab v6 control, data acquisition, and processing software,
- Extremely quiet and compact hydraulic power supply.
AutoLab 3000 Specifications
- Sample Diameters – 25 to 102 mm (1.0 to 4.0 in)
- Maximum Force – 4,315 kN (947,750 lb)
- Stiffness – 20 MN mm-1 (14 x 108 lbs in-1)
- Maximum Confining Pressure – 150 MPa (20,000 psi)
- Maximum Pore Pressure – 150 MPa (20,000 psi)
